Propane page

Here's where I will chronicle "my life with a Propane Jeep" ... no where else to put this stuff, really.  The buildup got me the components and a starting point.  The frame-up resto-build got me the driveline.  Here's what's not there:

I have an OHG-450 mixer, OHG X-1 converter, a Manchester "manifold" 13x13x32 tank, which is a 13x32 cylinder hooked to another one permanently.  12vDC filter/lockout solenoid at the rear with the tank, and a second lockout at the mixer up front.  I currently have that circuit through a kill switch, but need to run it through an oil pressure shut off switch to be truly safe in the event of an accident.  I have an Autotronix 4045 reading a Bosch 4-wire O2 sensor.

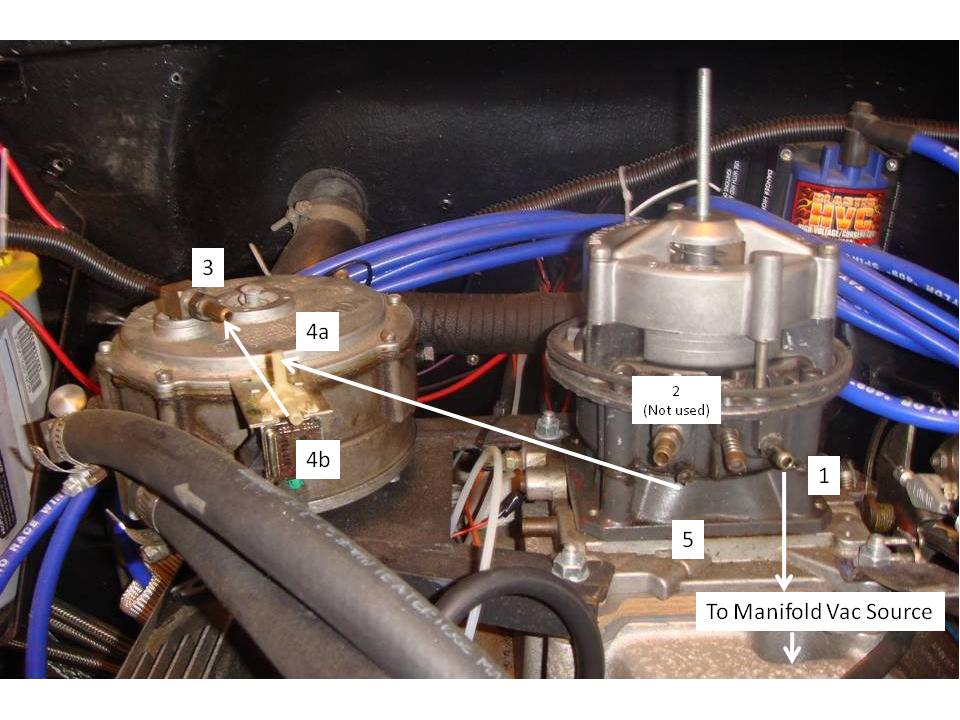

Here's the proper routing of vacuum lines for the mixer, converter and closed-loop solenoid.

My timing is currently somewhere in the 40 degree range.  I haven't adjusted it yet, since I have finally got the fuel rods punched down enough to make it run rich through the RPM range.  Now I can connect the Autotronix which will tune the mixer, then I can adjust the timing to match it.  That's the plan anyway.
