Feb 06: I've settled on parts, here's the short list and potential sources:

Jan 06: Well, it's time to get back into the Scrambler.  Poor thing has languished too long, and we've decided to tear it down.  In store is a whole list of stuff, to include a Jeep Grand Cherokee 5.2L V-8, 4spd Automatic, sand blasted and repaired body, updated interior and lots of other upgrades as well.  The engine will likely be treated to edelbrock heads and manifold, double-roller timing chain, new cam to better handle running on propane.  This is a win-win because not only do I get an overdrive tranny but a roller cam engine!

Depending on how the tranny lines up with the front drive shaft, I am considering a left-side drop Dana 44 in front and flipping the Dana 300 transfer case to get away from smashing the tranny pan like I have with the 727.
Here are the "before" pictures, and I'll carry on with posting as we enter the rebuild.  The last picture is my poor TJ which hauls me back and forth to work while I make the money to afford all the stuff I'm going to buy for the Scrambler!


06frt_rt.jpg (435044 bytes) 06left.jpg (461302 bytes) 06nose.jpg (360412 bytes) 06rear.jpg (380011 bytes) 06right.jpg (467837 bytes) 06tj.jpg (339284 bytes)

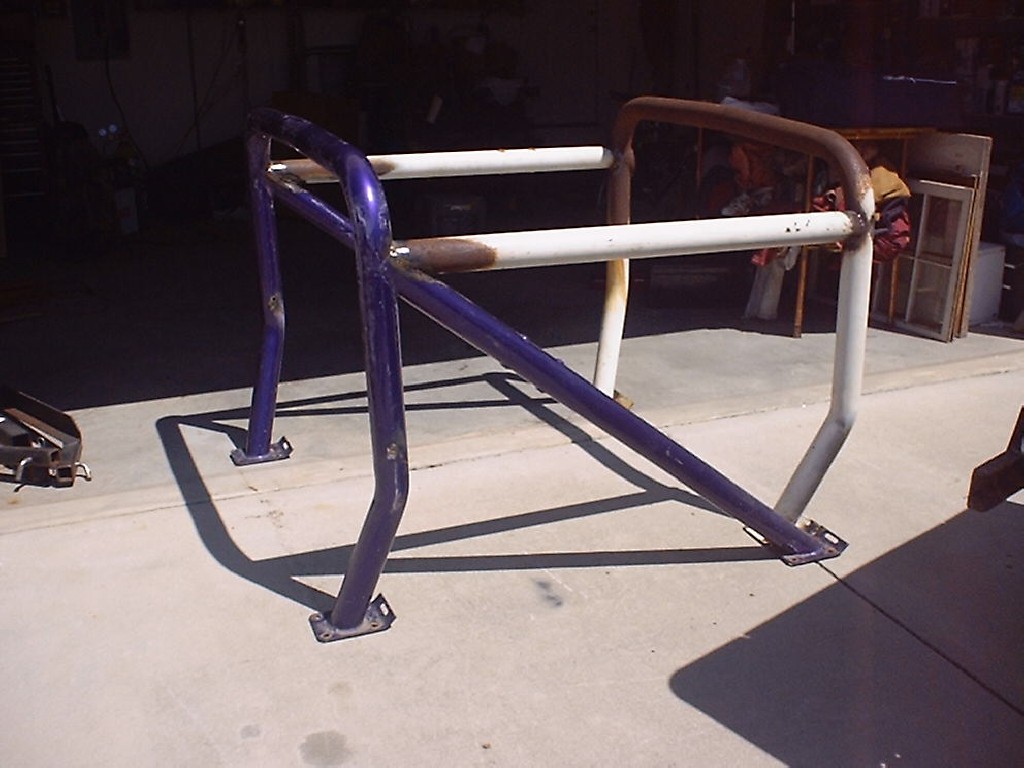

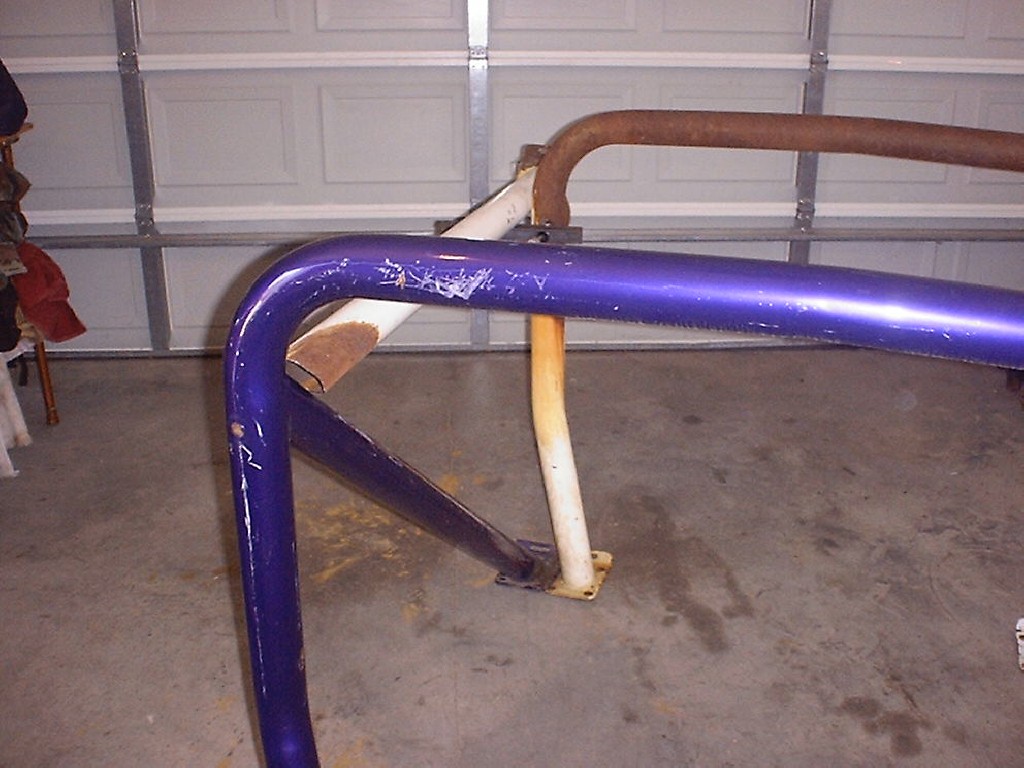

June 04:  Finally got the second rollbar mounted up.  Here's a hint: if you have an '82 or newer Scrambler (widetrac), get a bar from an '81 narrowtrac.  The feet of the '81 fit in between the feet of the '82, so no cutting of the horizontal tube of the rear bar.  Besides that, this places the rear bar's vertical tubes directly over the frame, right where you want a rollbar to hit.  Rough guesstimations put the airtank capacity of this setup at almost 30 gallons.  I ran out of time before I could get all the pinholes welded up, but I'm betting my on-board a/c compressor can keep up with them if I need it to.


I have also upgraded to a distributor cap adaptor, cap, rotor and wires from a 1982 Ford F-350 with a 460 V-8 ... HUGE cap compared to the AMC version, and it bolts right up.  The advantage is the increased distance between the contacts inside the cap: you can run higher voltage without the rotor bridging the gap between two contacts at once (reducing the charge going to the plug that needs it).  There's another writeup here: http://industryfigure.com/berkeley/fsj/ignition/

Mar 04:  Slowly working away at the pile of parts.  Added LED front turn signal lights.  Currently I don't have marker lights, but I think that's due to the crappy headlight switch I got from Schucks car parts.  I normally wouldn't "dime out" a business but I tried all 3 that they had on the shelf, NONE of them put power from the batt-hot lead to the marker lead in any switch position.  Guess I need a new car parts place if they're selling me new junk.

I found two more propane junkies (there are a few of us) http://www.alternatefuelsracing.com/ and a Purple (coincidence???) CJ-7 running propane - this guy got into a magazine, though! http://www.4wdandsportutility.com/features/4wd0402_everywrench/

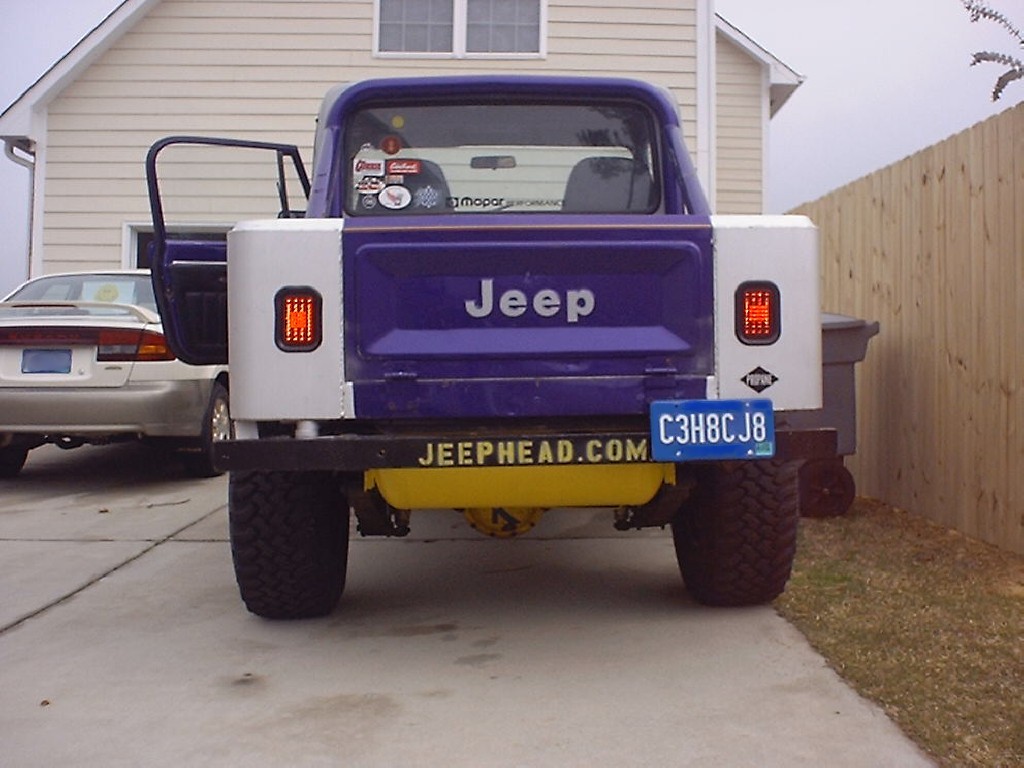

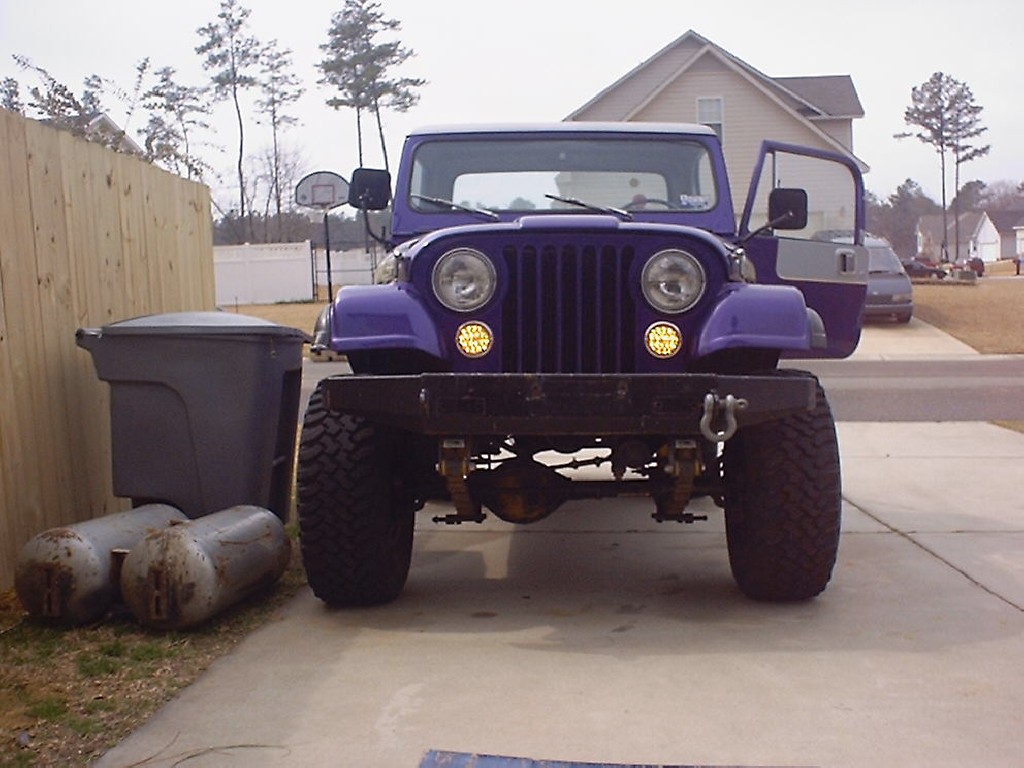

frontlight.jpg (152441 bytes)backlight.jpg (145111 bytes) In hindsight, I should have left one of them stock to show the difference, but I was pretty jazzed about getting something done!  An observant reader will notice the reason the new engine got put off: the new fence :O

In case you're wondering, C3H8 is the chemical makeup of propane.  It was either that or BBQJEEP but this seemed more ... cerebral.

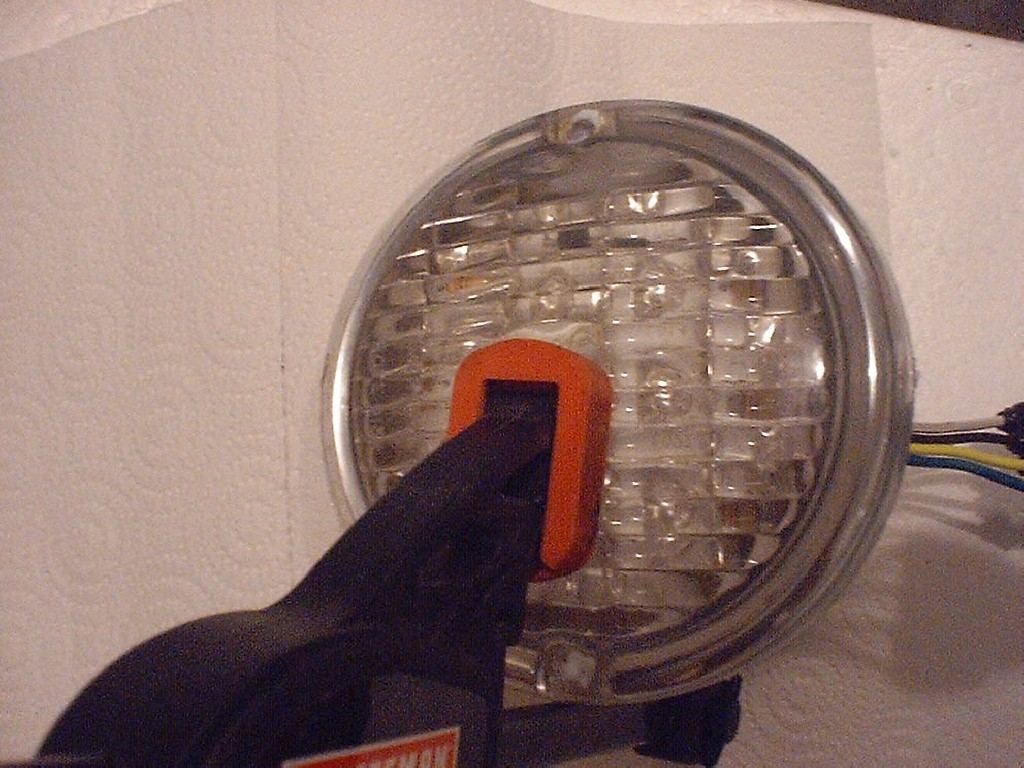

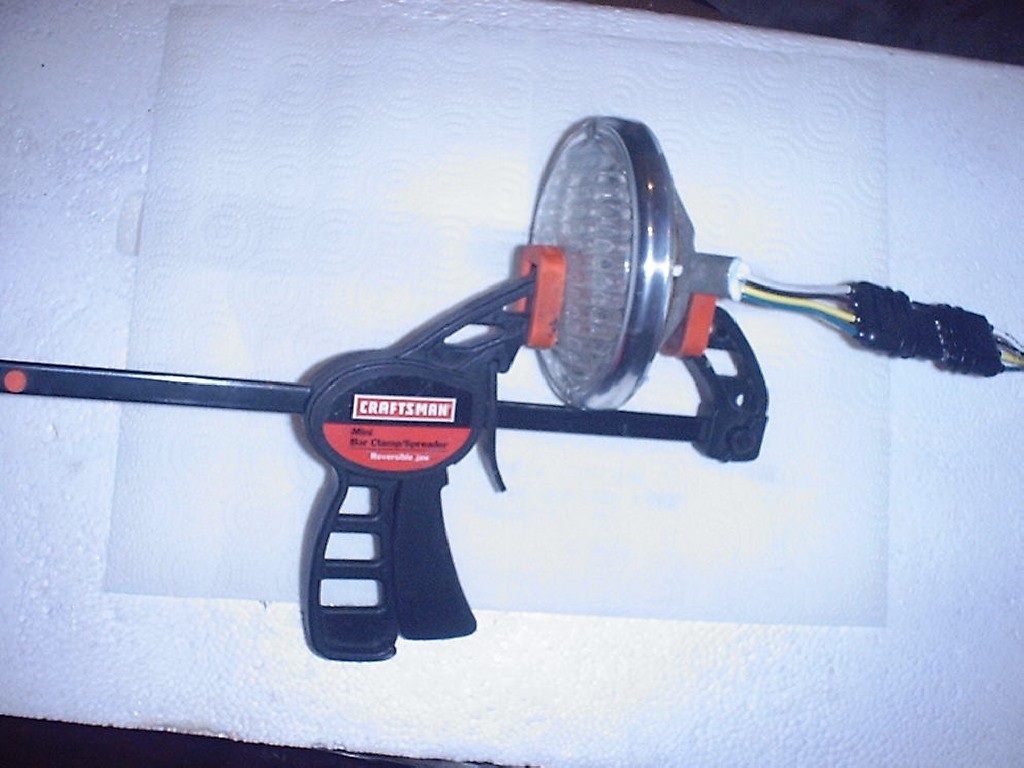

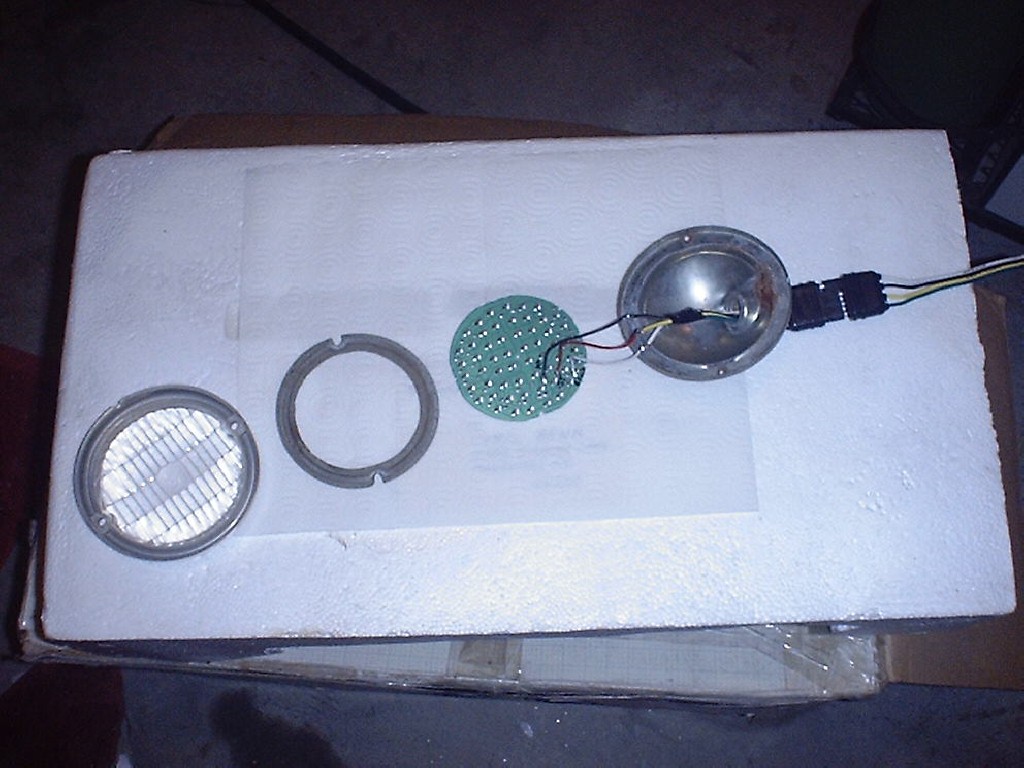

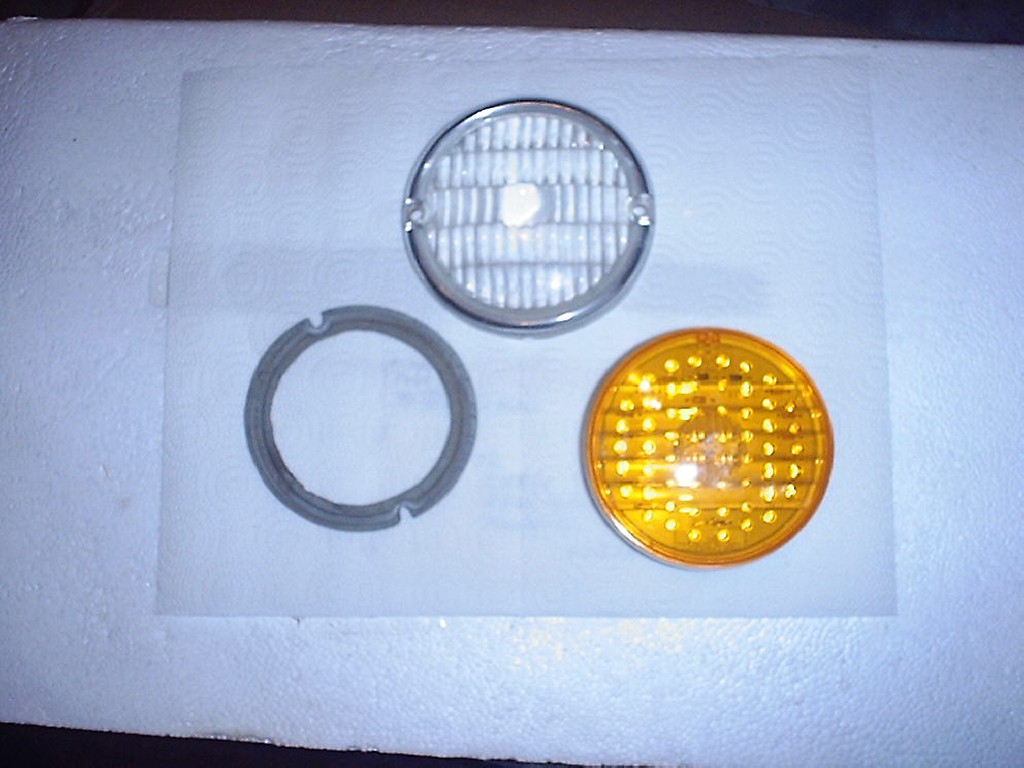

lenses.jpg (136597 bytes)lightclamp.jpg (206779 bytes) lightclampfar.jpg (134485 bytes)preassembly.jpg (155732 bytes) I got the LED lights from www.partssystems.com - the light is too big to fit in the hole in the grille.  I'd rather bust up a couple $30 lights than grind my sheet metal.  So I removed the circuit board, then used all-weather caulk to seal it into the back half of the original turn signal cup.  Don't caulk in the front half all the way around as I did the first time, it needs to vent water vapor out the bottom. It looks stock until I turn on the light.

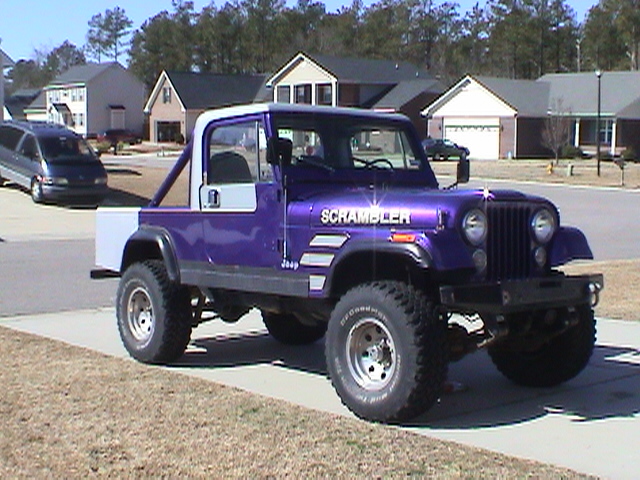

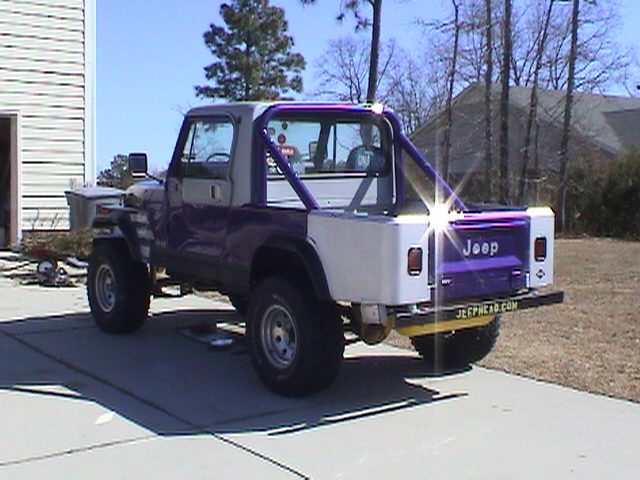

Feb 04:  Not much has happened recently, sad to say.  However, many parts are piled up and the time is near to start work on the Scramboneer again.  Here's what it looks like right now:


I did manage to turn some wrenches on the tow rig's Dana 60 front axle.

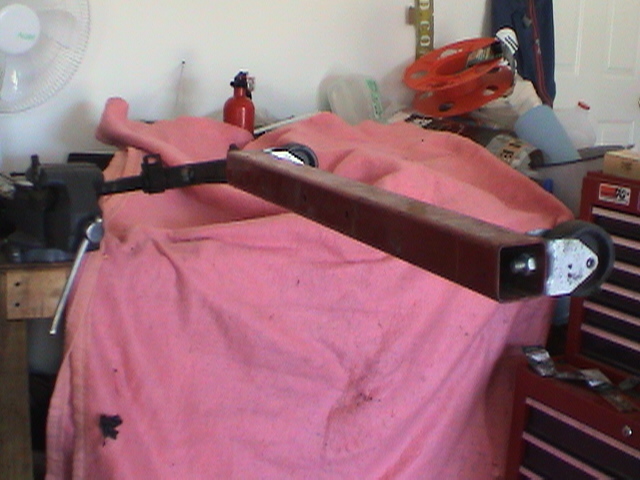

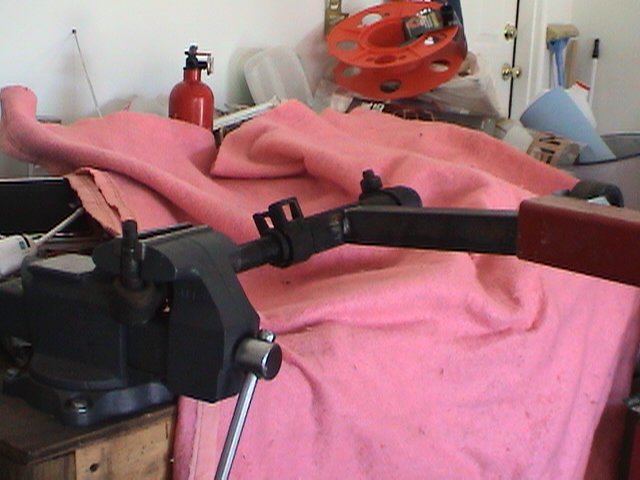

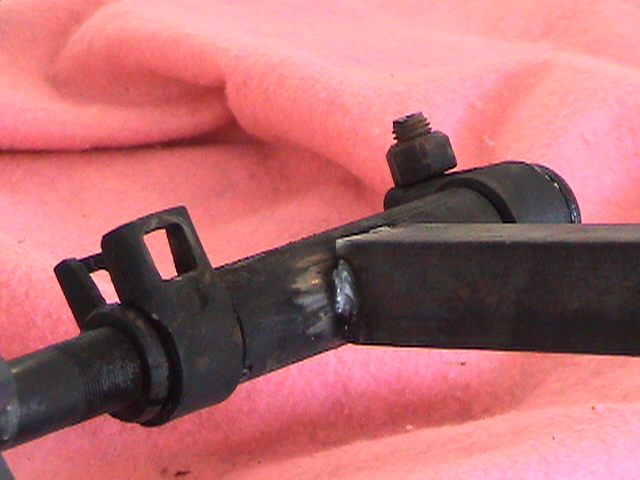

The tie rod adjusting sleeve was stuck so bad that I had to weld a piece of angle to it then use the legs off my engine stand to pry it loose.  The pink blanket was supposed to help make the parts more visible ... not sure it worked!
